Column Type Size Nulls Auto Default Children Parents Comments
RTE_BRCH_ID varchar 40
krew_rte_brch_st_t.RTE_BRCH_ID Implied Constraint R
NM varchar 255
PARNT_ID varchar 40  √  null
INIT_RTE_NODE_INSTN_ID varchar 40  √  null
SPLT_RTE_NODE_INSTN_ID varchar 40  √  null
JOIN_RTE_NODE_INSTN_ID varchar 40  √  null
VER_NBR decimal 8  √  0

Table contained 121 rows at Mon May 07 20:18 PDT 2012

Indexes:
Column(s) Type Sort Constraint Name
RTE_BRCH_ID Primary key Asc PRIMARY
NM Performance Asc KREW_RTE_BRCH_TI1
PARNT_ID Performance Asc KREW_RTE_BRCH_TI2
INIT_RTE_NODE_INSTN_ID Performance Asc KREW_RTE_BRCH_TI3
SPLT_RTE_NODE_INSTN_ID Performance Asc KREW_RTE_BRCH_TI4
JOIN_RTE_NODE_INSTN_ID Performance Asc KREW_RTE_BRCH_TI5

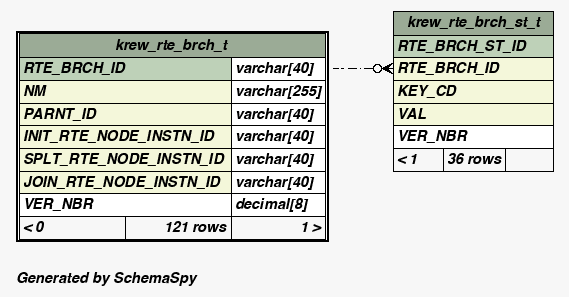

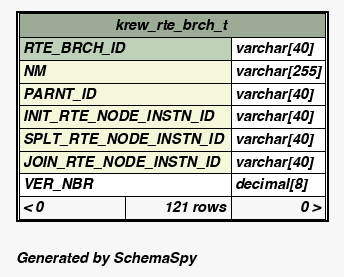

Close relationships:
