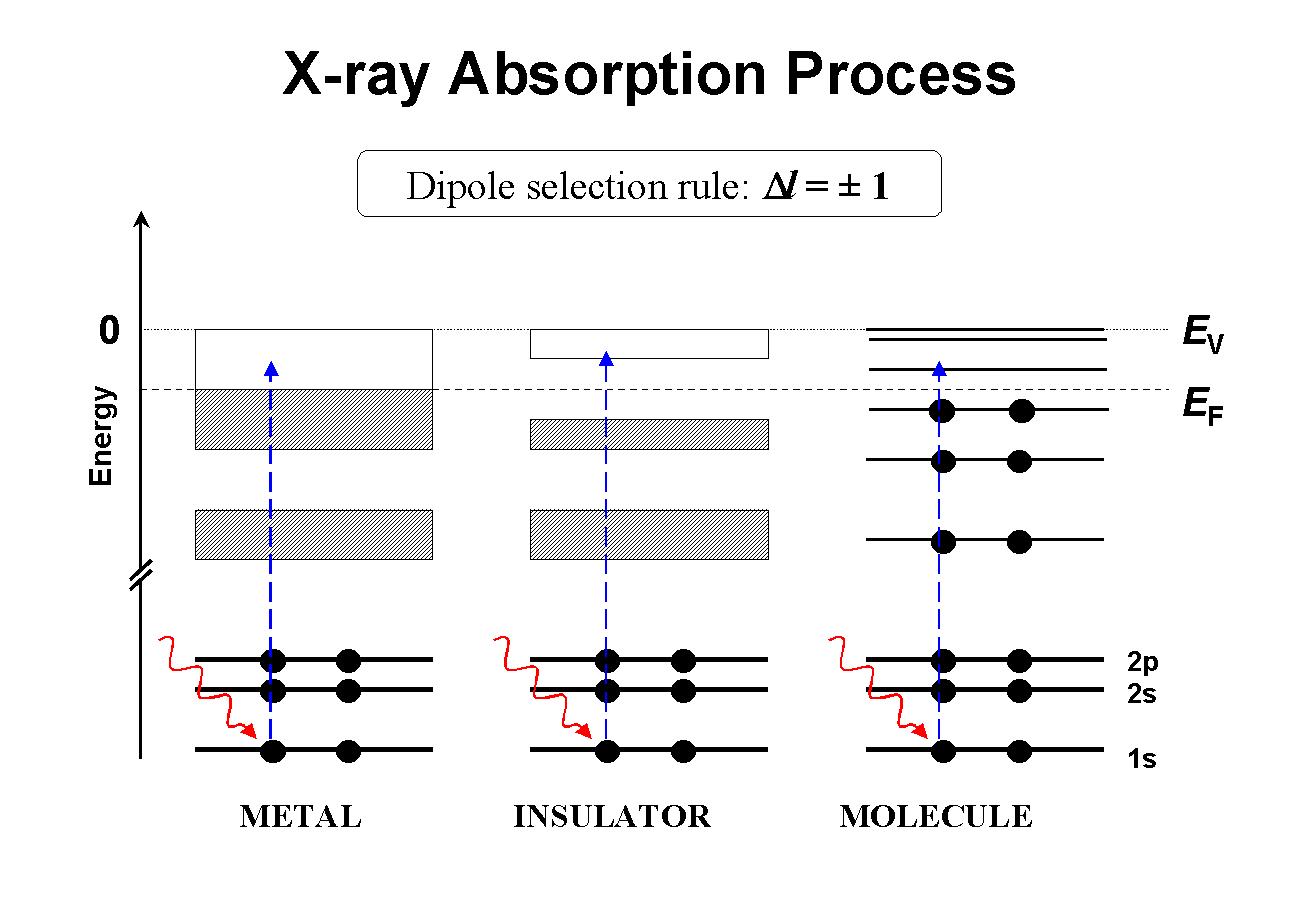

Here one can see a schematic overview of the X-ray absorption process in metal, insulator and molecule. They are based on the simulation of configuration averaged EXAFS spectra by Molecular Dynamics or reverse Monte Carlo methods. WebATOMS - a program for generating lists of atomic coordinates from crystallographic data. EvAX - simulation-based analysis of EXAFS data for crystalline and nanocrystalline materials.
X-ray Diffraction Techniques Click here for actual (non-printable) TLP pages Note: DoITPoMS Teaching and Learning Packages are intended to be used interactively at a computer! You will find it beneficial to have knowledge of crystal structures, as this will enable a better understanding of the results of X-ray diffraction.
You should also have read the Crystallography TLP and the Lattice Planes and Miller Indices TLP.
X-ray diffraction is an important tool used to identify phases by comparison with data from known structures, quantify changes in the cell parameters, orientation, crystallite size and other structural parameters. The laboratory source of X-rays consists of an evacuated tube in which electrons are emitted from a heated tungsten filament, and accelerated by an electric potential (typically several tens of kilovolts) to impinge on a water-cooled metal target. Note: This animation requires Adobe Flash Player 8 and later, which can be downloaded here. The diagram below illustrates the characteristic X-ray emission spectrum that is obtained from a copper target. During diffraction a monochromator (a single crystal of known lattice spacing and orientation) is placed in the path of the primary or diffracted beam.
The monochromator is set so that the beam is diffracted and only X-rays with the required wavelength reach the detector.
The concept used to derive Bragg's law is very similar to that used for Young’s double slit experiment. An X-ray incident upon a sample will either be transmitted, in which case it will continue along its original direction, or it will be scattered by the electrons of the atoms in the material. Constructive interference occurs when two X-ray waves with phases separated by an integer number of wavelengths add to make a new wave with a larger amplitude.
When two parallel X-rays from a coherent source scatter from two adjacent planes their path difference must be an integer number of wavelengths for constructive interference to occur. The angle between the transmitted and Bragg diffracted beams is always equal to 2θ as a consequence of the geometry of the Bragg condition.
The diffracting plane might not be parallel to the surface of the sample in which case the sample must be tilted to fulfil this condition. The simplest way of demonstrating application of Bragg’s law is to diffract X-rays through a single crystal. This implies that lattice parameters calculated from high angle diffraction peaks are more accurate than those taken from low angle peaks. The structure factor, Fhkl , of a reflection, hkl, is dependent on the type of atoms and their positions (x, y, z) in the unit cell.
The proportionality includes the multiplicity for that family of reflections and other geometrical factors. The peak width β in radians (often measured as full width at half maximum, FWHM) is inversely proportional to the crystallite size Lhkl perpendicular to hkl plane.
In the next section there is a simulation which shows how changes in the structure of a simple cubic material influences the diffraction pattern.
A powder is a polycrystalline material in which there are all possible orientations of the crystals so that similar planes in different crystals will scatter in different directions.
The other situation which is intermediate between single crystal and powder diffraction is when the sample is oriented and the spots are spread into arcs. The X-ray beam comes from the tube, though slits, is diffracted from the sample, goes though another set of slits, diffracted from the secondary beam monochromator and measured by the detector. The simulation below shows how the powder diffraction pattern of a simple face-centred cubic structure is influenced by changes in the cell parameter, atomic number, crystallite size and what happens when the material becomes amorphous.
In its simplest form, PDF1 (powder diffraction file) lists d-spacings and relative intensities. In a complementary manner, orientation can be measured by recording how a reflection is spread at constant 2θ. Following completion of this TLP, you should have a basic understanding of the phenomenon of X-ray diffraction through a crystalline material. Quick questionsYou should be able to answer these questions without too much difficulty after studying this TLP. Deeper questionsThe following questions require some thought and reaching the answer may require you to think beyond the contents of this TLP.
What sort of improvement in precision might you expect in cell parameter calculations when increasing 2θ?
Published as: “Near edge X-ray absorption fine structure spectroscopy with X-ray free-electron lasers”, Appl. A new method to perform X-ray absorption spectroscopy experiments at a free-electron laser has been developed.


Near edge X-ray absorption spectroscopy (NEXAFS or XANES) is uniquely powerful [1-3] to learn about the electronic structure properties of matter, which determines materials properties like magnetism. To this end, we adapted the way NEXAFS is measured to the requirements imposed by the nature of SASE-FEL radiation. These measurements have brought us a good step towards femtosecond time resolved NEXAFS for materials science and high field induced studies in solids. Original Article (“Near edge X-ray absorption fine structure spectroscopy with X-ray free-electron lasers”, Appl.
During the absorption process core electrons are excited into empty states above the Fermi energy and thereby probe the electronic and magnetic properties of the empty valence levels. However, very often the requirement to keep the total thickness of the sample including substrate and support is difficult to fulfill, in particular if one sets out to study single crystalline samples that need to be prepared on macroscopically thick substrates.
X Ray AbsorptionX RAY ABSORPTIONSpecific spectroscopy extra infor- mation because of x-ray can be found. X-ray Photoelectron Spectroscopy —— Application in Phase-switching Device Study Xinyuan Wang A53073806. Emre Ertugrul 20824006 Emin Sahin 20824259 Seckin Gokce 20824044 KMU 396 Material Science and Technology.
Ultraviolet Photoelectron Spectroscopy (UPS) UV light ( h = 5 to 100 eV) to excite photoelectron. Grazing incident X-ray Diffraction (XRD) X-rays are electromagnetic radiation with very short wavelength ( ? 10 -8 - 10 -12 m), very suitable to do diffraction. Unknown at first, these photons from innershell transitions have played a vital role in materials analysis. University of California, Berkeley March 9, 2007 Tony van Buuren Nanoscale Synthesis and Characterization Laboratory Lawrence Livermore National Laboratory. X-Ray Photoelectron Spectroscopy (XPS) David Echevarria Torres University of Texas at El Paso College of Science Chemistry Department.
This print-friendly version of the TLP is provided for convenience, but does not display all the content of the TLP. When the target’s inner electrons are ejected and outer ones fall to take their place, X-rays are emitted. This angle is readily obtainable in experimental situations and hence the results of X-ray diffraction are frequently given in terms of 2θ. This means that a small error in the recorded angle of the diffraction peak will cause a significant error in the calculated lattice parameter. However, most commonly for multiphase samples, changes in intensities are related to the amount of each phase present in the sample.
This means that for a given wavelength and sample setting relatively few reflections can be measured: possibly zero, one, two (as in the video) or possibly up to say three or four.
It has been speeded up as typical data collection time would be somewhere between 10 mins and 10 hours. Most data are now indexed and so include cell parameters, the chemistry, density and other properties of the material. In a diffractometer scan the relative intensities of the peaks are intermediate between those of a single crystal and a powder. An unoriented powder has rings of constant intensity, while an oriented sample has an arc or sharp spot. This package has explained how to use an X-ray diffraction experiment to reveal information such as what crystalline phases are present, their cell (or lattice) parameters, crystallite size and whether the phase is single crystal, oriented or a polycrystalline powder. Institute for Methods and Instrumentation in Synchrotron Radiation Research G-I2, Helmholtz-Zentrum Berlin fur Materialien und Energie, Albert-Einstein-Str. Instead of selecting a narrow bandwidth of the incident beam with a grating-monochromator, a dispersive set-up is used. With femtosecond X-ray pulses, transient states and ultra-fast dynamics in matter are accessible and have been explored so far at femtosecond slicing facilities at synchrotron radiation facilities.
The main point is that we do not scan the monochromator, but use it in dispersive geometry, where the spectrum is then measured by an area detector, where the position on the detector corresponds to one specific energy. The radiation-fan from the grating at the PG2 beamline at FLASH [5] is passing through the sample, where one-half of the fan is absorbed by the LaMnO3 film and the membrane and the other passed through the uncovered membrane. Future improvements will aim to bring the interaction region just between the X-ray source and the monochromator grating in order to ensure the shortest possible and eventually the most brilliant X-ray pulses to interact with the sample. 1 (click to enlarge): L-edge x-ray absorption edge spectra of Fe, Co and Ni in the form of the elemental metals and as oxides.
In the following we are concerned with the spectra of the magnetic 3d transition metal elements Fe, Co and Ni. 2 (click to enlarge): X-ray absorption spectra of a wedge sample, revealing the composition at various points along the wedge. In the first approach the intensity of an x-ray bean is measured before and after it passes through a sample using a photodiode.
In this case one can detect the x-ray absorption spectra by detecting the intensity of the secondary electrons that are ejected from the sample during the absorption process. King Lun Yeung Department of Chemical Engineering Hong Kong University of Science and Technology CENG 511 Lecture 3.


We are primarily interested in the peaks formed when scattered X-rays constructively interfere.
The main aspects of collecting and analysing X-ray data in the laboratory have been covered. The incident pink radiation from the SASE-FEL is dispersed by the grating and collected by an area detector. Turning to the brilliant femtosecond X-ray pulses from Free-Electron Laser Sources we now want to expand femtosecond time resolved electronic structure studies further and explore how brilliant X-ray pulses modify electronic properties in matter.
The half that is transmitted through the membrane is used for determining the intensity and spectral distribution of the incident flashes, the other half absorbs the radiation based on its energy. Note that the Fe signal increases from bottom to top because of the increasing Fe layer thickness. This method requires that the total thickness of the sample including the substrate is less than the absorption length of the x-rays which ranges between 0.1-1 micrometer. This is achieved by connecting the sample to a very sensitive current amplifier and measuring the charge that flows to the sample to compensate for the charge lost during the absorption process. The formatting (page breaks, etc) of the printed version is unpredictable and highly dependent on your browser. For most experiments, a single characteristic radiation is selected using a filter or monochromator. Knowing that LiF has a cubic structure with a unit cell ~4.03, means that this reflection must be (002) (which is the same as (200) and (020)). It is maintained by ICDD (International Centre for Diffraction Data) formerly JCPDS (Joint Committee for Powder Diffraction Standards). The first one is a simple purity check on hydroxyapatite and the second a more complex example identifying three possible phases in stabilised zirconias. UnsureIn each case give a reason for your answer and when unsure consider whether you could do something to clarify the situation. The right side shows the transmission through the LaMnO3-film, which reflects the absorption by the sample.
A special sample-preparation method has been used in order to measure the intensity and energy distribution of the incident and absorbed beam simultaneously. The other half was left intentionally blank in order to determine the spectral distribution of the incident beam as a reference. Since energy and intensity are measured simultaneously, it is possible to normalise each individual spectrum, which reflects only a small part of the total absorption spectrum.
Since x-ray absorption spectra are governed by dipole selection rules the d-shell properties are best probed by L-edge absorption studies (2p to 3d transitions). At the same time the Ni signal decreases because of the limited electron escape depth of the total electron yield signal used to record the spectra. Since the x-rays travel through the entire sample and hence equally probe every atomic layer this approach provides excellent bulk sensitivity.
Figure 2 shows an example where x-ray absorption spectra were acquired in the total electron yield mode.
Electrons are emitted from this entire area Electrons are extracted only from a thin layer close to the surface. A powder pattern consists of rings in 2-dimensions, and spheres in 3-dimensions, of even intensity from each accessible reflection at the 2θ angle defined by Bragg's Law. This method can be improved in the future to perform pump-probe experiments with XAS as the probe with fs-temporal resolution at an FEL. The L-edge x-ray absorption spectra of the transition metals and oxides are dominated by two main peaks separated by about 15 eV as shown in Fig. It also excellently suited to study magnetic properties since the detected x-rays do not interact with an external magnetic field. Note, that because of the limited escape length of the detected electrons one does obtain an excellent sensitivity to the very thin Cu surface or Fe interface layer. The other two spectra (C and D) show the intensity and energy fluctuations of the incident beam. These pictures are examples of two of the many spectra, which were measured without a sample, in order to determine the detector calibration function.
These two main peaks in the spectra arise from the spin orbit interaction of the 2p core shell and the total intensity of the peaks is proportional to the number of empty 3d valence states. The empty oxide states are more localized than metal states and their energies are determined by crystal field and multiplet effects. Multiplet effects arise from the spin and orbital momentum coupling of different 3d valence holes (or electrons) in the electronic ground state, and from coupled states formed after x-ray absorption between the 3d valence holes and the 2p core hole.
