Current

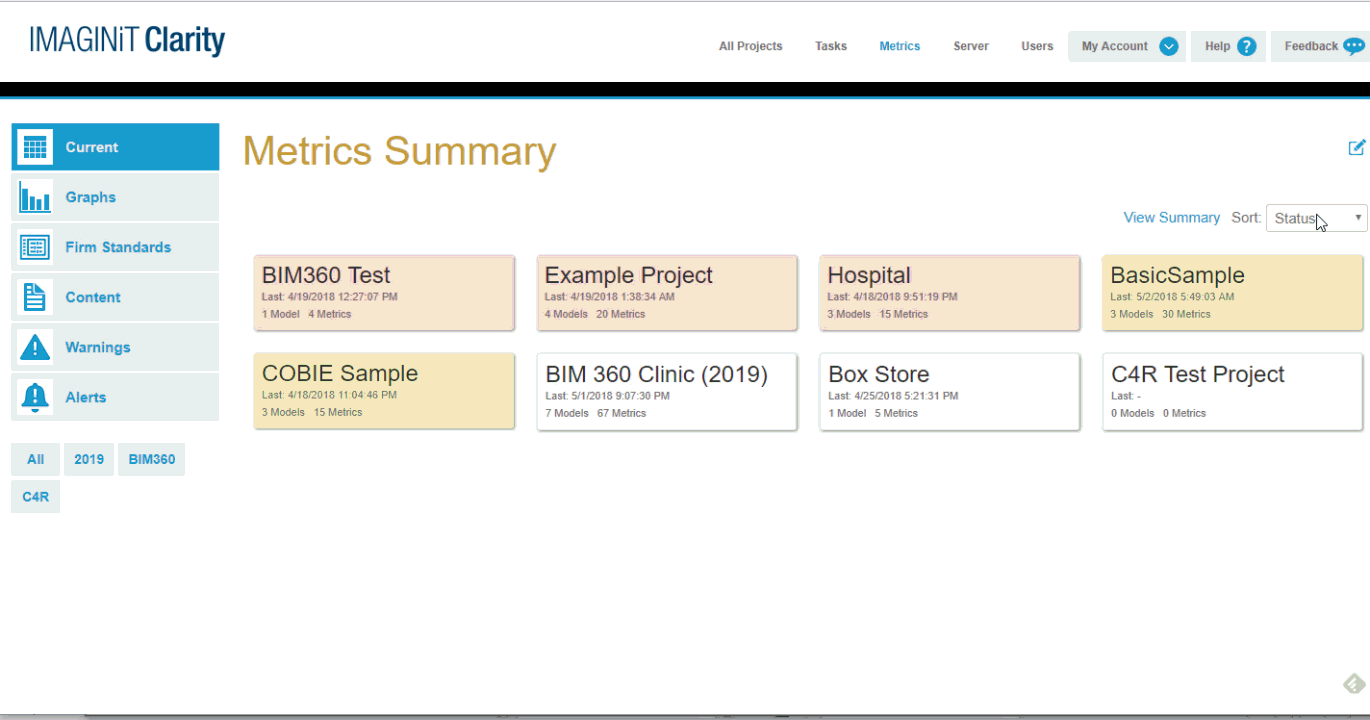

The Current pane gives an overview of the latest metric status of all projects in Clarity. Projects are sorted by status, name, or metrics.

Sorting by status actually sorts the projects by the seriousness of issues found, which are based on the subset of metrics selected in the Firm Standards pane.

Project displays RED if:

Project contains at least one model with an Issue.
Model contains at least one Issue.

Project displays YELLOW if:

Project contains at least one model with a Concern issue.
Model contains at least one Concern issue.

Project displays in WHITE (no color) if:

Project do not contain any models with issues or concerns.
Model does not contain any issues or concerns.

To filter the list of projects to a subset, click the tags on the left hand side, under the available panes.

To see which models have metric issues, click on the project box, which expands into the list of models on the project.

To look at the individual issues, click on the model to expand the list of Firm Standard Metrics for that model.

View Summary

To get a broad view of how frequently each kind of metric is at the Issue or Concern level, click View Summary next to the Sort drop-down list.

The dialog box enables you to see, for each Firm Standard Metric, what % of the currently shown projects or models are at something other than an OK level.

Click on either the Issues or the Concerns numbers to show the projects or models that contain the issues, as shown in the following image.
