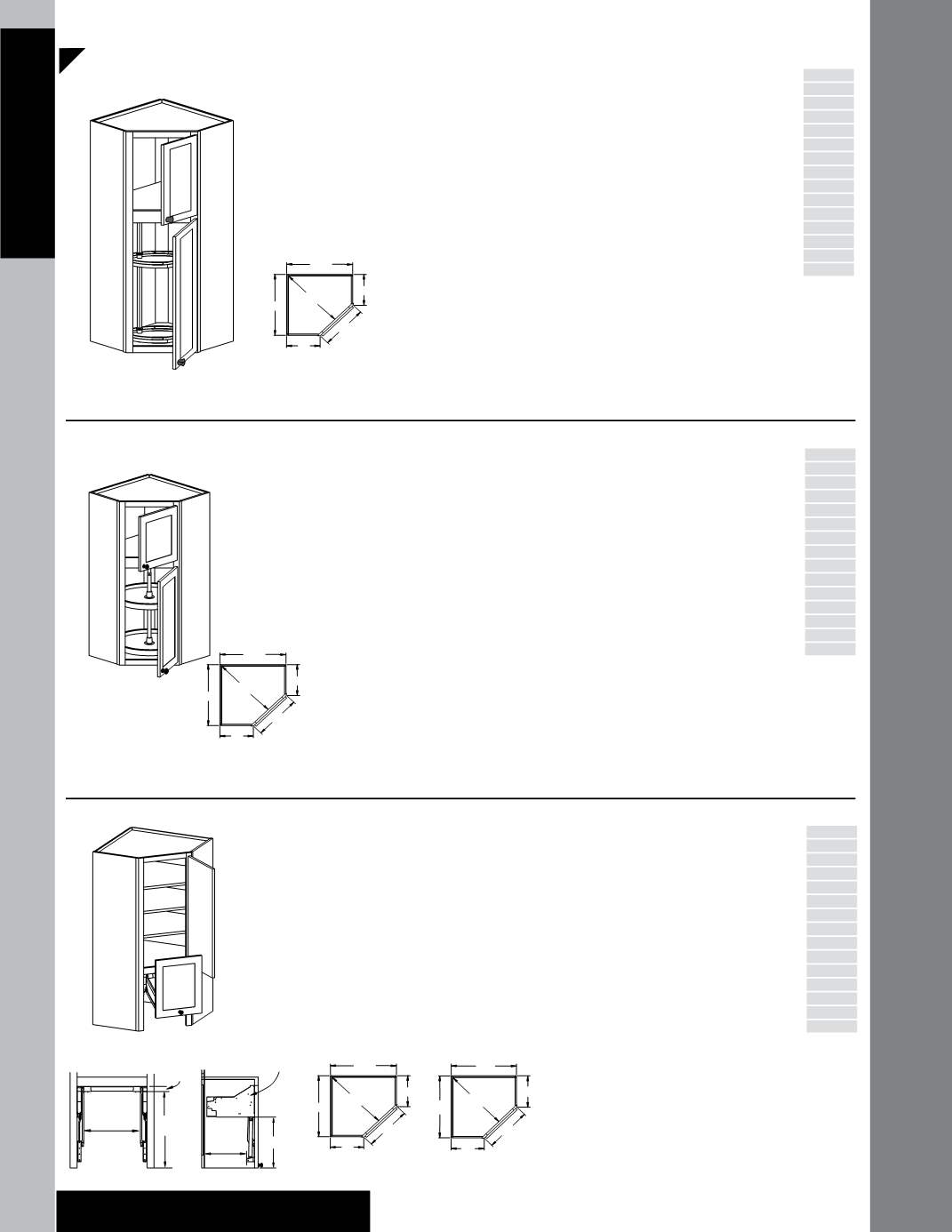

Wall Corner Cabinets
Wall Cabinets
Wall Angle Chrome Lazy Susan Stack
Specify R or L
48” High
WAST2448 R or L•CLS
51” High
WAST2451 R or L•CLS
54” High
WAST2454 R or L•CLS
• 19 11/16” diameter rotating shelves
• Shelves rotate together
• Two vertical compartments with fixed
rail and floor
• Bottom door is always square
I
Glass doors available for top doors only
I
To get glass on bottom door, order
appropriate replacement door with glass
option
•
Note
: Full overlay door styles use a 1/2”
overlay hinge
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
OE
CW
RD
ID
CH
TWR
XS
XSG
New
Grey color coding indicates new product, size or code.
Wall Angle Wood Lazy Susan Stack
Specify R or L
48” High
WAST2448 R or L•WLS
51” High
WAST2451 R or L•WLS
54” High
WAST2454 R or L•WLS
• 19 1/2” diameter rotating shelves
• Shelves rotate independently
• Rotating shelves have plywood floor and
solid wood trim
• Two vertical compartments with fixed
rail and floor
• Bottom door is always square
I
Glass doors available for top doors only
I
To get glass on bottom door, order
appropriate replacement door with glass
option
•
Note
: Full overlay door styles use a 1/2”
overlay hinge
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
OE
CW
RD
ID
CH
TWR
XS
XSG
Wall Angle Appliance Garage
Specify R or L
Two adjustable shelves
48” High
r
WAAG2448 R or L
Ir
WAAG2748 R or L
Three adjustable shelves
54” High
WAAG2454 R or L
I
WAAG2754 R or L
57” High
WAAG2457 R or L
I
WAAG2757 R or L
60” High
WAAG2460 R or L
I
WAAG2760 R or L
• Clearance from countertop to bottom of
door is 20 1/32˝
• Adjustable Soft-Close lift mechanism
standard
• Shelves shipped separately
• Bottom door is always square
• Void All Door and Drawer Front option
(VDA) is
not
available
I
Glass doors available for top doors only
•
Note
: Full overlay door styles use a 1/2”
overlay hinge
I
PE
l
APC
l
APFC
I
FPEB
l
MI
DE
OE
CW
RD
ID
I
CH
TWR
XS
XSG
r
Change Height (CH) option
not
available
I
Furniture plywood ends (FPEB) standard
I
GD
I
GD
I
GD
