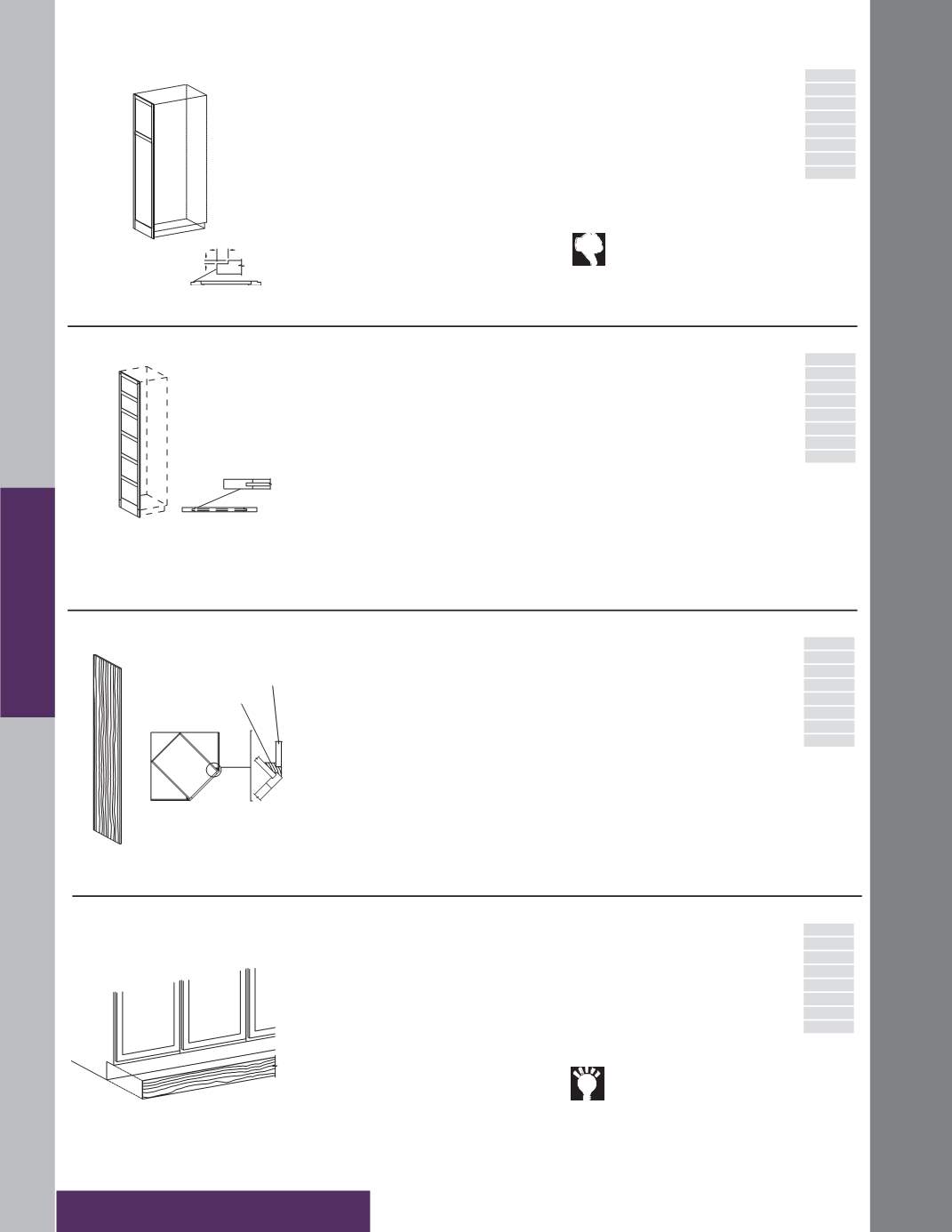

Tall Cabinets
F30
Tall Cabinet Accessories
Universal Tall End Panel
UTEP2484
UTEP2487
UTEP2490
UTEP2493
UTEP2496
• 3/4” thick frame with square recessed panel
• Field installation only
• Reversible, may be used on either right or left
end
•
Not
available in Laminate door styles
•
Not
available in R.Morristown; R.Brockton,
R.Melrose and R.Putnam Oak supplied plain
sawn
I
Wide Bottom Rail—field notch for toe kick
Do
not
order a Universal Tall End
Panel (UTEP) when using Matching
Wall and Base End Panels (MWEP
and MBEP) in the rest of the kitchen. UTEP’s
do
not
have a matching profile, therefore,
they will
not
match the doors.
APC
APFC
MI
CW
RD
CH
I
WR
VTK
¾˝
3
/
16
˝
11 / ˝
23 / ˝
84˝
87˝
90˝
93˝
96˝
Gray color coding indicates new product, size or code.
Recessed Matching Tall End Panel
60 1/2” High
RMTEP1260 •M
RMTEP2460 •M
84” High
RMTEP1284 •M
RMTEP2484 •M
87” High
RMTEP1287 •M
RMTEP2487 •M
90” High
RMTEP1290 •M
RMTEP2490 •M
93” High
RMTEP1293 •M
RMTEP2493 •M
96” High
RMTEP1296 •M
RMTEP2496 •M
• 3/4” thick
• Quartersawn solid wood
• Recessed panel grain runs horizontally
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Field installation only
• Reversible, may be used on either right or left
end
• Available in R.Morristown door style only
I
Wide Bottom Rail—field notch for toe kick
APC
APFC
MI
CW
RD
CH
I
WR
VTK
Will not fit flush against 1/2˝end panel,
a 3/16˝ shim is recommended
11 / ˝
23 / ˝
84˝
87˝
90˝
93˝
96˝
Gray color coding indicates new product, size or code.
Corner Tall End Panel
Wood Veneer
Width x Height x Thickness
WCTEP84
23 1/8” x 84” x 1/2”
WCTEP87
23 1/8” x 87” x 1/2”
WCTEP90
23 1/8” x 90” x 1/2”
WCTEP93
23 1/8” x 93˝ x 1/2”
WCTEP96
23 1/8” x 96” x 1/2”
• See Option #2 in Diagonal Installation of
Standard Tall Cabinets in the back of this
section
• Quartersawn Cherry and Maple door styles
supplied plain sawn
• Painted hardwood supplied for EverCore™
• Corner Tall End Panel (CTEP) and Corner Tall
Molding (CTM8) are sold separately
v
APC
APFC
MI
CW
RD
CH
WR
VTK
23
1
/
8
˝
CTEP
CTM8
CTEP
84˝
87˝
90˝
93˝
96˝
Gray color coding indicates new product, size or code.
Toe Kick
Black
=
BLTK8
• 1/8” thick
hardboard, 4 1/2”
high
Aluminum finish
MTK8 •A
• 1/16˝ thick flexible
laminate, 4 1/2˝
high
Stainless finish
MTK8 •S
• 1/16˝ thick flexible
laminate, 4 1/2˝
high
i
WMTK8
• 3/16” thick wood
veneer, 4 1/2” high,
to match
• Edges are unfinished
• Quartersawn Cherry and Maple door styles
supplied plain sawn
• Field installation only
•
Note
: Matching toe kick is
not
automatically
supplied with cabinets. It
must
be ordered as
a separate item
Apply Quarter Round molding
(QR8) at the base of Matching Toe
Kicks or Wood Matching Toe Kicks
(WMTK8) for a nice, finished look.
APC
APFC
MI
CW
RD
CH
WR
VTK
96˝
=
Painted hardwood supplied for EverCore™
i
Painted hardwood supplied for EverCore™
and Laminate
